Office Multifunction Standalone Access Control Products With Waterproof For Single Door

Product Descripition

Introduction

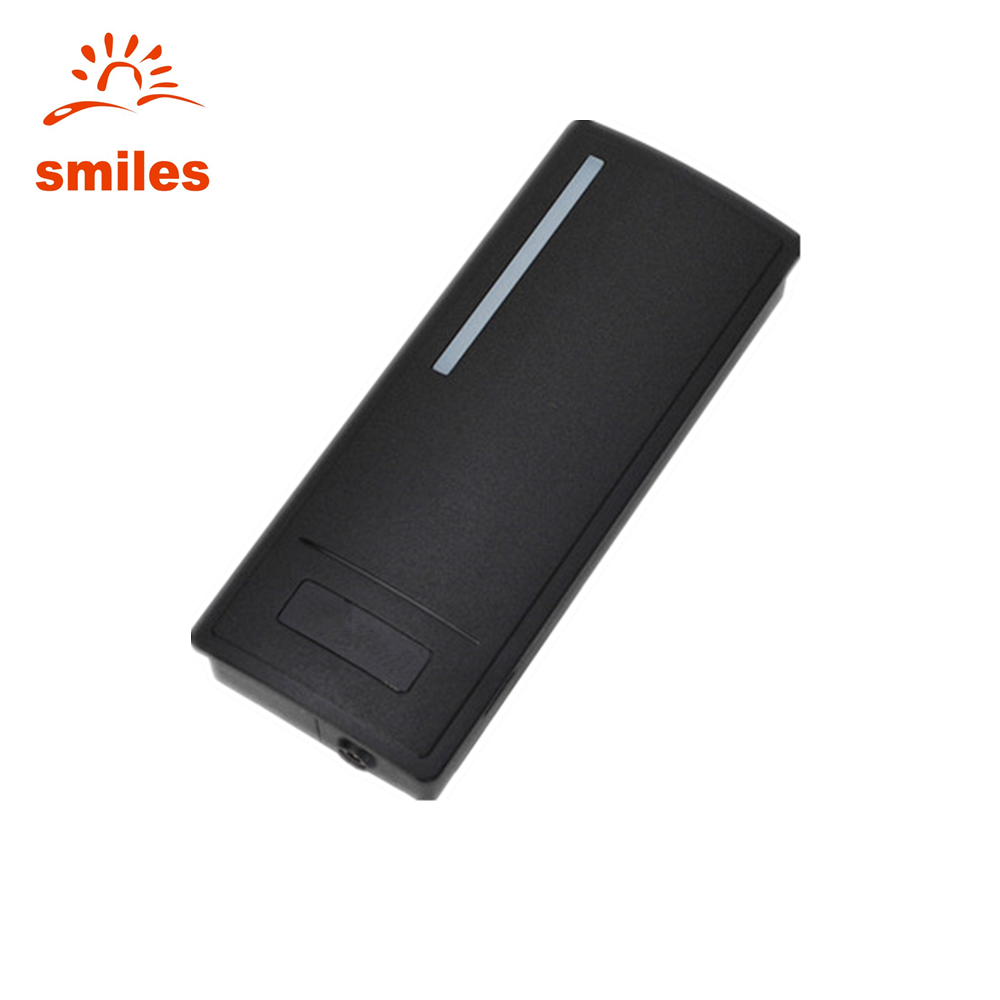

The S004 is a single door multifunction standalone Access Controller or a Wiegand output reader. It uses Atmel MCU assuring stable performance, packed with small Infrared Remote Control, the operation is very user-friendly, low-power circuit makes it long service life.

The S004 supports 1,000 users (998 common users + 2 panic users), all user data can be transferred from one to another (Max 10pcs). It supports multi access modes in either card access, PIN access (Use PIN on the Infrared Remote Control), Card + PIN access, or multi cards/PINs access. It has extra features including block enrollment, interlocked, Wiegand 26~37 bits interface…etc.

Specification

Product Name: Waterproof Standalone Access Control

User Capacity: 10000 Users

Proximity Card Reader: EM&HID

Waterproof degree: IP66

Relay: NO, NC, Common

Operating Voltage: 12~24V AC/DC

Features

Waterproof, conforms to IP66

One relay, remote infrared programmer

1,000 users (998 common users + 2 panic users)

Can add and use 4~6 digits PIN on Infrared Remote Control

Can be set to read EM card, HID card, or both

Wiegand 26~37 bits input & output

Can be used as Wiegand reader with LED & Buzzer output

Card block enrolment

Tri-colour LED status display

Integrated alarm & buzzer output

Pulse mode, Toggle mode

User data can be transferred

2 devices can be interlocked for 2 doors

Built in light dependent resistor (LDR) for anti tamper

Low temperature resistance(-40℃)

Installation

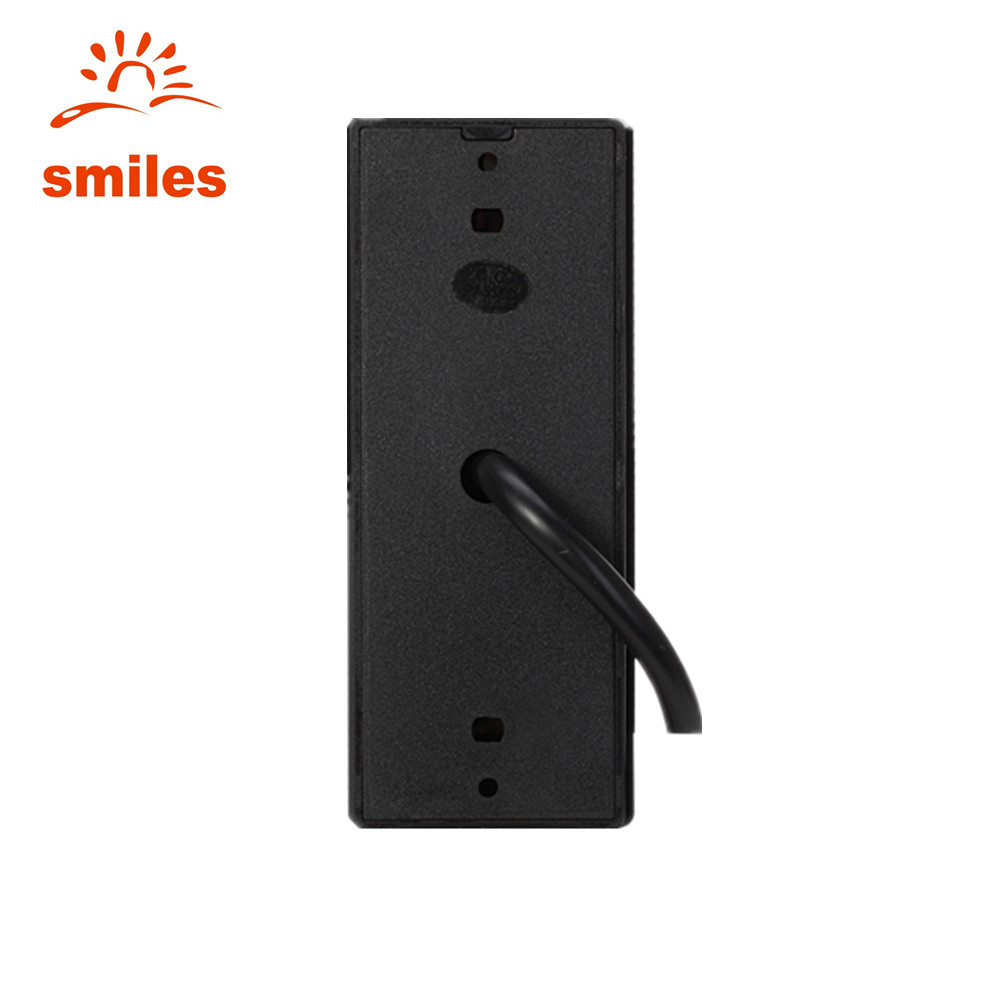

Remove the back cover from the unit

Drill 2 holes(A,C) on the wall for the screws and one hole for the cable

Knock the supplied rubber bungs to the screw holes(A,C)

Fix the back cover firmly on the wall with 4 flat head screws

Thread the cable through the cable hole(B)

Attach the unit to the back cover

Wire
