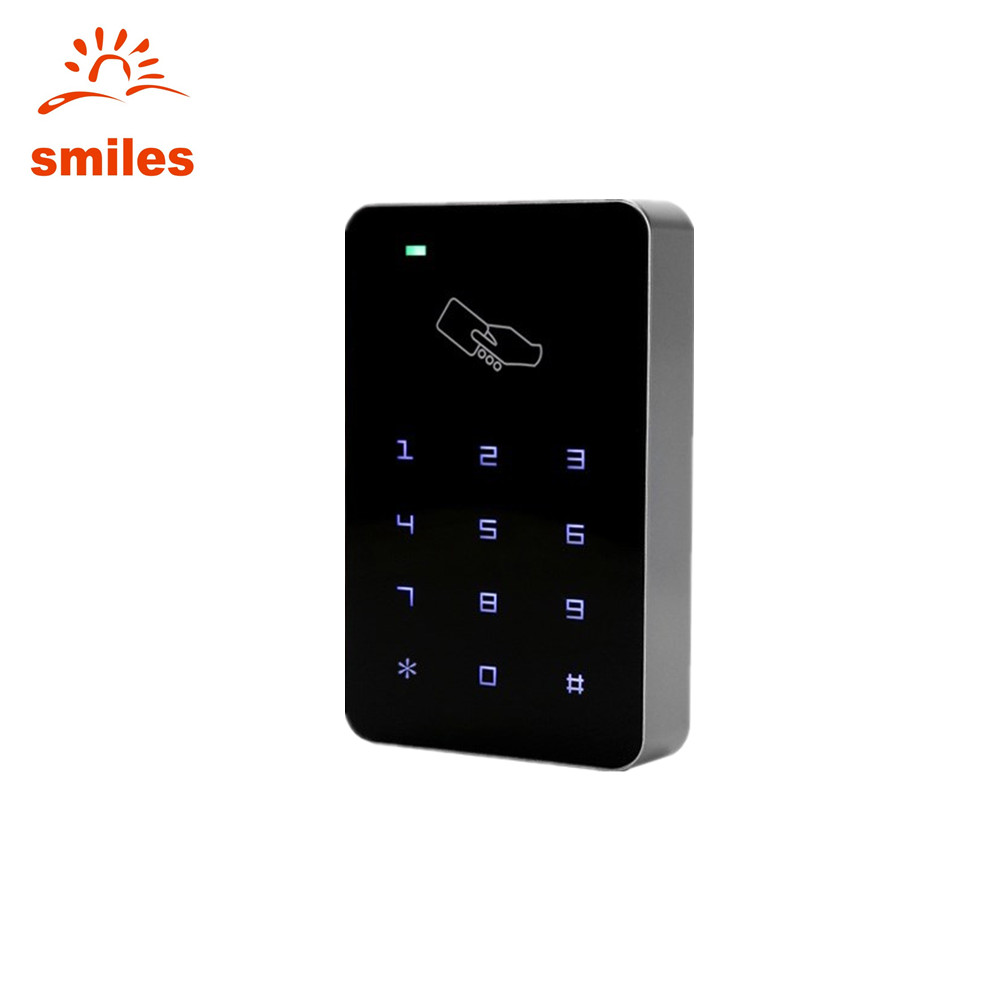

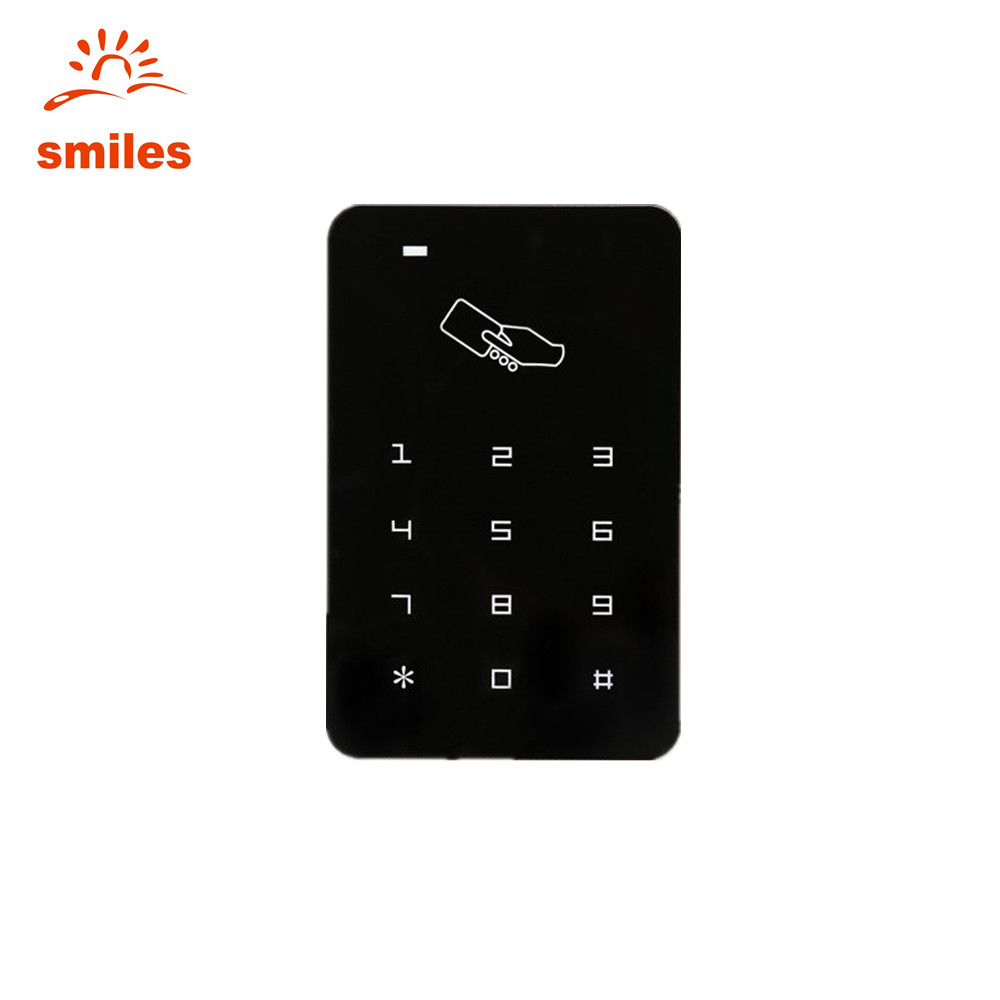

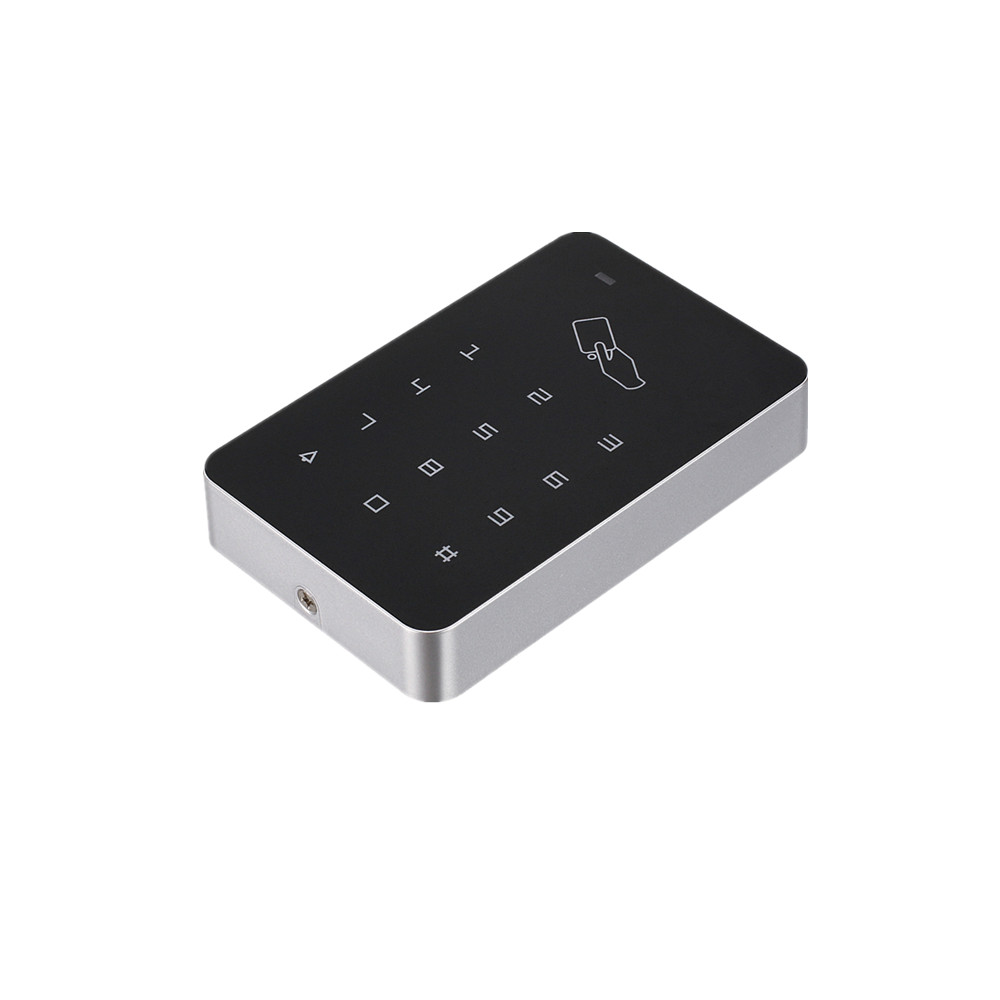

Standalone Card RFID Access Control Keypad Wiegand

Specification

Product Name: Access Control system

User Capacity: 1000 Users

Card Reading Distance: 1~15cm

Proximity Reader Frequency: 125KHz

Wiegand Interface: Wiegand 26 bit

Size: 117*75*20mm

Features

Voltage: DC 12V

Current: <100mA

User capacity: 1000 users

4-digits public PIN Capacity: 1

Proximity Reader Frequency: 125KHz

Compatible Cards: EM or EM compatible card (Can't support some encrypted cards,such as HID, Cobra, APCiK etc)

External Reader: Not support

Compatible Cards: EMID or ID compatible card

Card Reading Distance: 1-15cm

Dimension: 117*75*20MM

Weight: 260g

Door Open Options (admin user selectable): ID Card (Key Ring) Only / Password Only / ID Card (Key Ring) + Password
