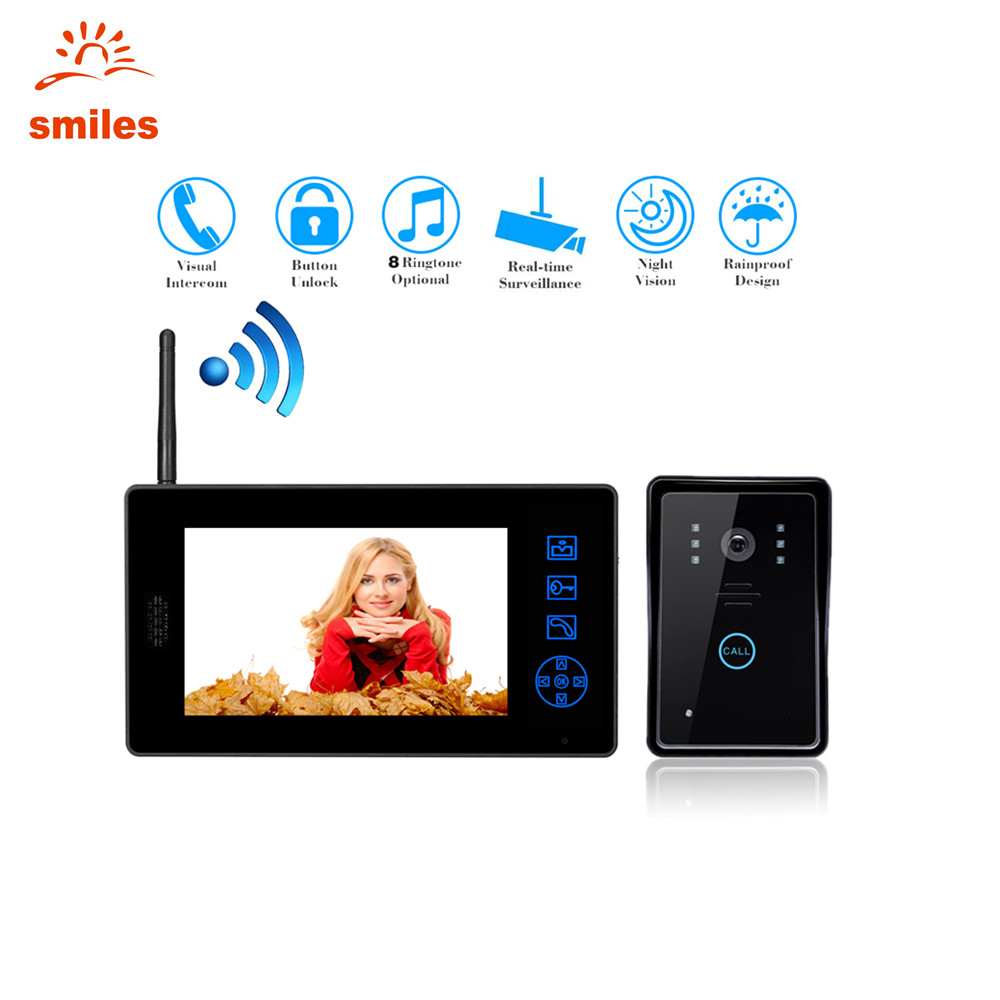

Weatherproof 7 inch Multi Apartments Wireless Video Door Phone

Specification

Product Name: Wireless Video Door Phone

Screen size: 7 inches

Display size: 235 * 130 * 20 mm

The LCD resolution: 800 * 480

Main functions: monitoring, video, photo, video intercom, open the lock

Operating frequency: 2.4 GISM digital public spectrum

Features

This product is suitable for office buildings, villas, warehouse, etc. Digital audio and video product is 2.4 G wireless transmission principle, outdoor camera, indoor display, two-way radio, can monitor the outdoor, auxiliary lighting features advanced night vision, you also know to party in the evening.

Product main functions:

1) photo and video archive functions: master is not at home, have a guest visit, and as long as the light ring the bell, and automatically take pictures or videos automatically stored (can only set up a kind of way), the master came back free query, not miss any important meetings.

2) visual intercom function: have a guest come to visit, pressed the doorbell and intercom call freely, voice is clear, such as before;

The function and characteristics

1) 2.4 G transmission frequency, barrier-free communication distance of about 150 m;

2) USES the digital processing technology, automatic wireless transceiver functions, good performance, high reliability;

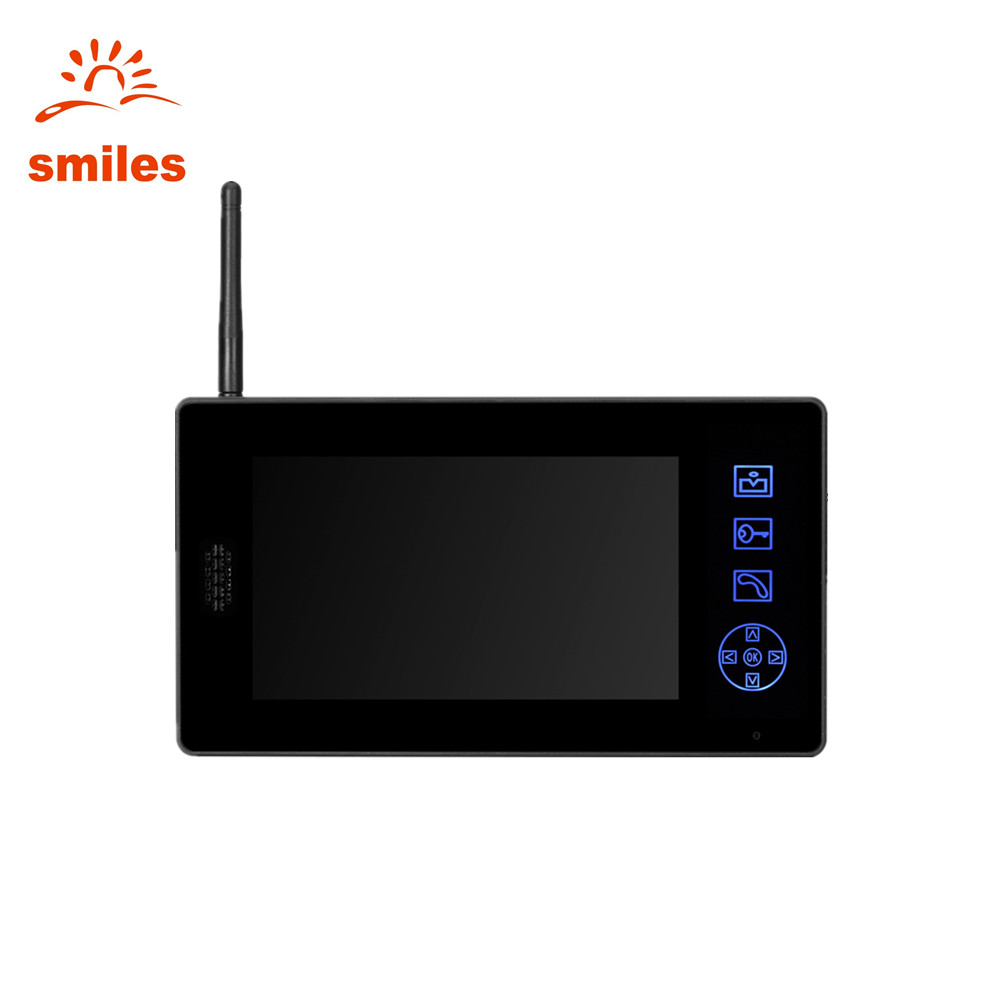

3) Indoor machine use TFT true color display 7 inch digital;

4) Outdoor use CMOS 100 megapixel digital camera;

5) Clear night vision function, and can realize 24-hour call, intercom, lock, etc;

6) Indoor machine automatically by the outdoor take photos or video recording.

Display parameters

Screen size: 7 inches

Display size: 235 * 130 * 20 mm

The LCD resolution: 800 * 480

Image resolution: 640 * 480

Main functions: monitoring, video, photo, video intercom, open the lock.

Extended memory: maximum support 32 gb TF card (standard does not include memory card)

Video formats: the ASF (can be directly playback, computers should be installed with the software to play)

State of a single picture: 640 * 480 @ 25 FPS

Four images status: 320 * 240 @ 25 FPS

Photo format: 640 * 480 JPG

power input: 100-100,50/60 hz

The power output: 5 v / 2 a

Video output formats: PAL and NTSC

video output: 1vp - p CVBS

Working current: less than or equal to 400 ma

Operating frequency: 2.4 GISM digital public spectrum

Surveillance camera

camera size: 110 * 58 *58mm

Lens: 3.6 mm

Resolution: 1 million pixels

Perspective: 92 degrees

Night vision distance: 5-15meters

Main functions: the infrared night vision surveillance

The working frequency: 2.4 G ISM digital public spectrum

Working current: daytime: 250 ma; Night: 450 ma MAX

power input: 100-100,50/60 hz

The power output:12v / 1 a

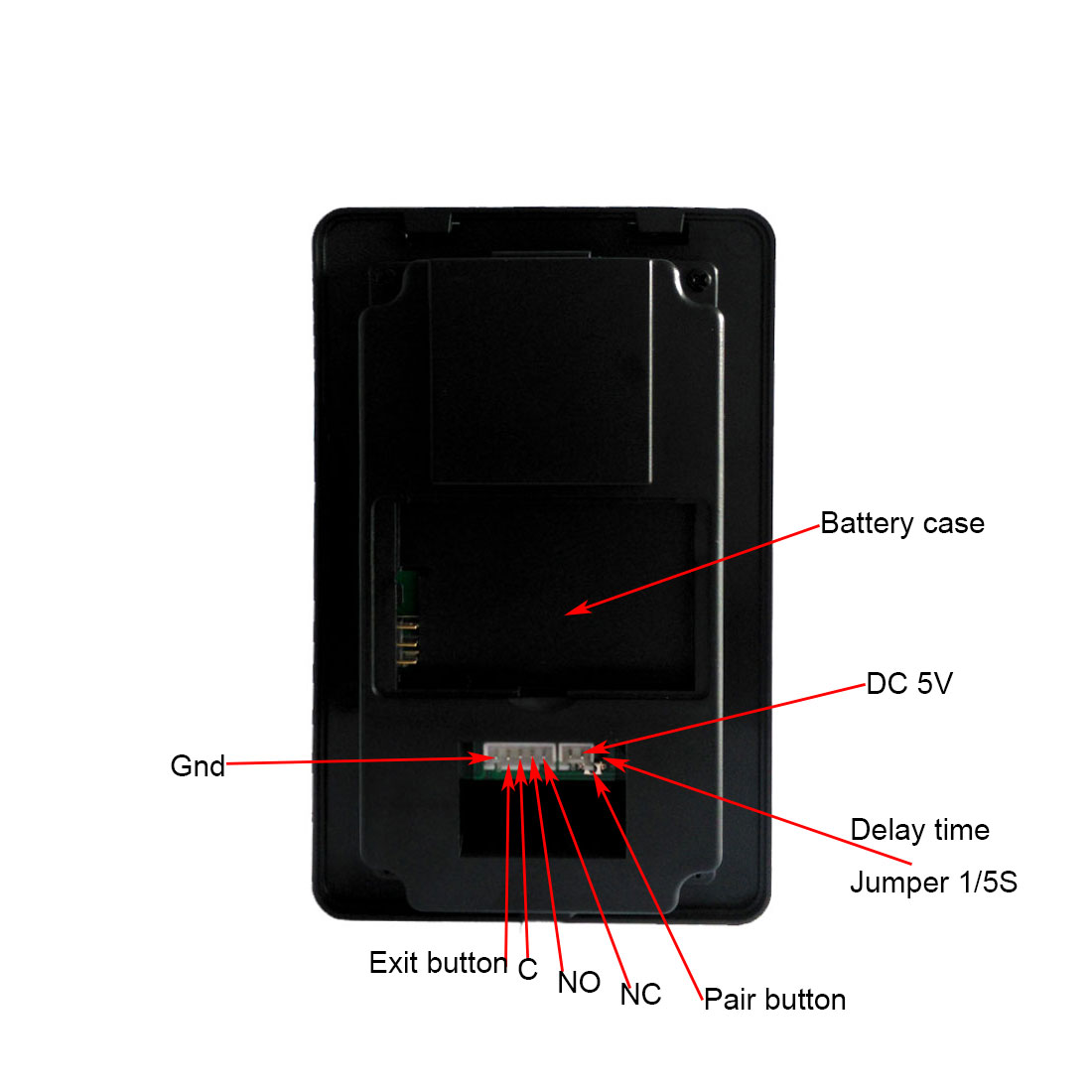

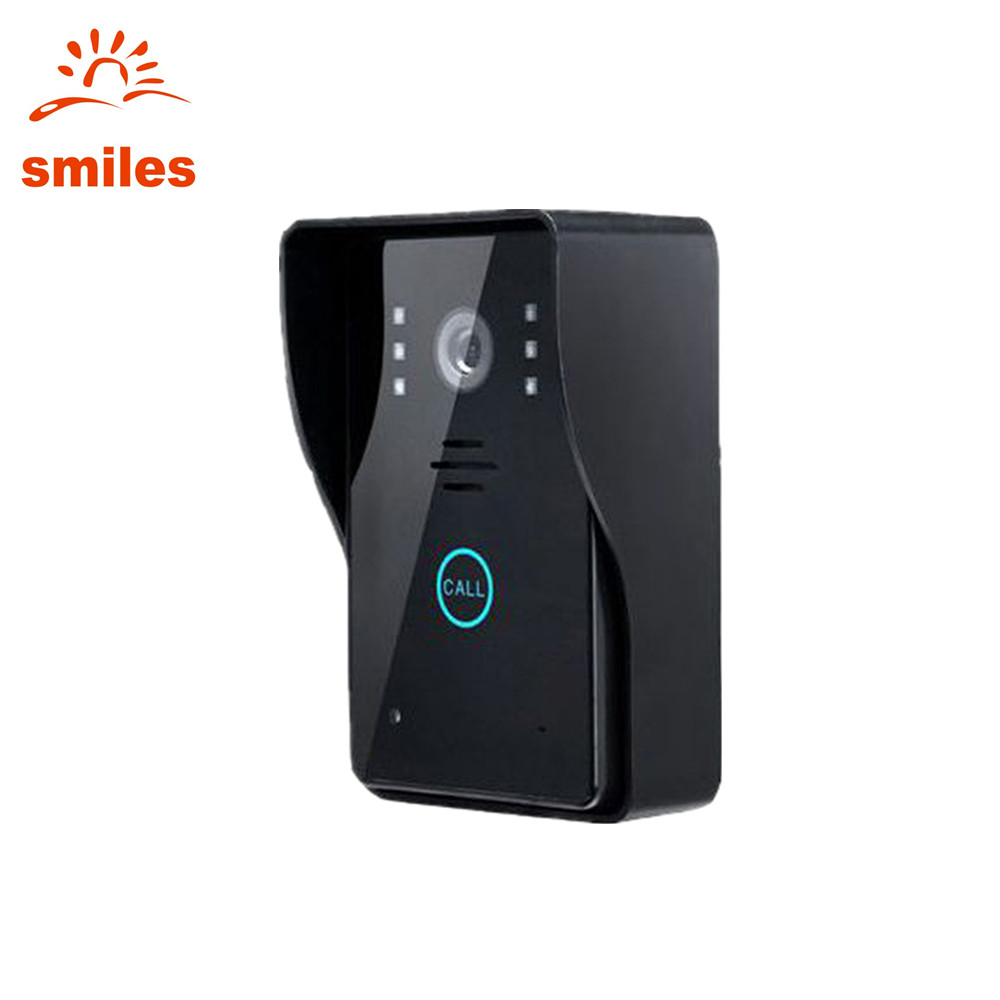

Outdoor camera

Camera: 1/4" CMOS

Camera lens: 3.6mm

Camera viewing angle: 92 degrees

Call duration time: 30-120 Seconds Adjustable

Monitor duration time: 30-120 Seconds or long times

Power consumption: Static state <0.5W, calling <10W

Power input: AC 100V-240V 50/60 Hz

Power output: DC5V

Operating frequency: 2.4 GISM digital public spectrum

Outdoor camera:168*110 *65mm
