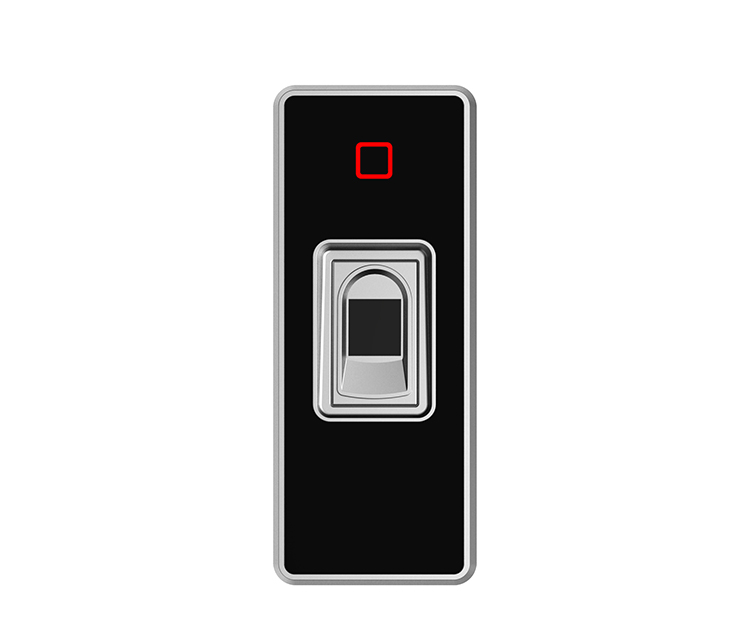

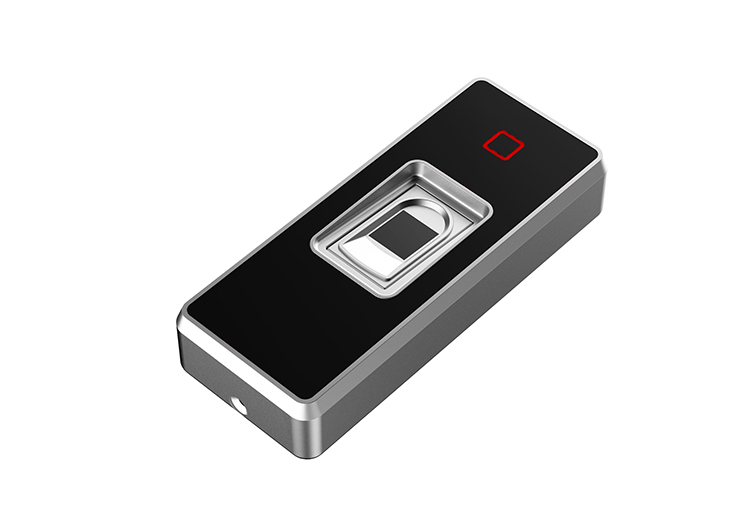

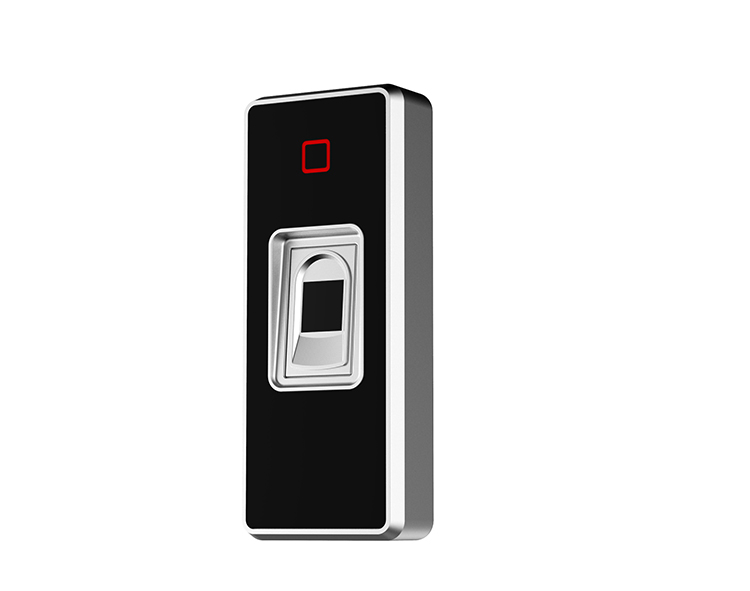

Weatherproof Zinc Alloy Biometric Fingerprint Door Access Control Terminal Support Card Reader and Remote Controller

Introduction

It supports fingerprints and EM RFID card. The performance has been

greatly improved.

The product uses the precise electron circuit and good productive technology,

which is the metal structure machine of fingerprint & card access. It is

widely used in business organization, office, factory, housing district etc.

The product uses remote controller or Admin fingerprints for programming,

support fingerprints and EM 125Khz card, easy to install and program.

Features

Metal Shell: Durable, anti-vandal

Ultra-low Power Consumption: Long-lived, performance stable, standby current is less than 30mA

Touch Sensor activated: Fingerprint recognition is very fast

Capacity:  200 fingerprints & 500 cards (1000 fingerprints &2000 cards can be selected)

Used as a Card Reader: Can be used as a card reader with Wiegand26 output

Used as a Standalone Access Control: Can connect external EM/Mifare/HID wiegand26 card reader

Specification

Operation Voltage: DC+12V±10%

Idle Current:≤20mA

Standby Current: ≤80mA

Card Reading Distance: ≥2cm

Operating Temperature: -20~+50℃

Operating Humidity: 20%RH-95%RH

Resolution: 450 DPI

Fingerprint Input Time: <1S

Identification Time: <1S

FAR: <0.0198%

FRR: <0.0000256%

Structure:  Zinc Alloy

installation and Wiring

Drill the hole according to the size of the product and fix the bottom shell with

the equipped screws. Thread the lead wire out of the outlet hole of the bottom

shell, connect the lead wire according to the function required, and wrap the

unused wires to avoid short circuit. After wire connected, fix the front shell to

the bottom shell and turn the screws well, installation is finished.
