No touch exit button

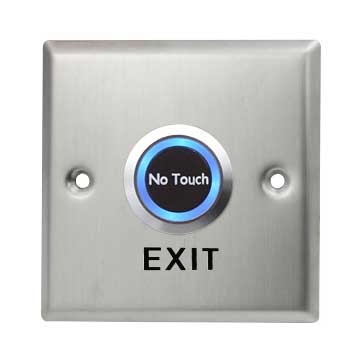

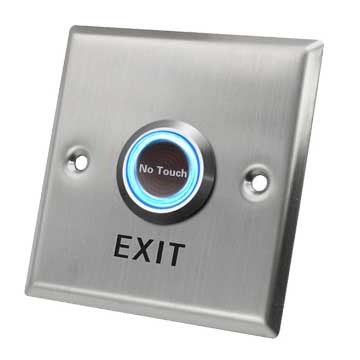

Square Type Touchless Sensor Door Exit Switch
- Model Number: EX86S
- Material: 0.8mm Thick 304 Stainless steel
- Power: 12VDC & 24VDC
- Output: NO/NC/COM/+12/GND
Product Name Infrared Sensor Exit Button
Material: 0.8mm Thick 304 Stainless steel

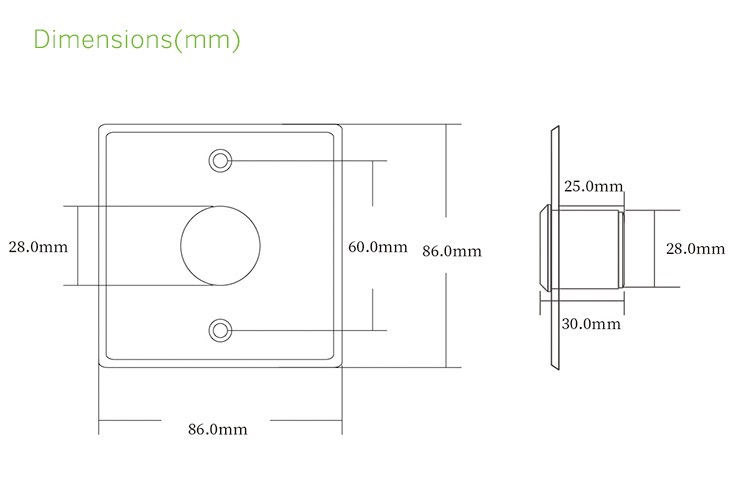

Dimensions: 86Lx86Wx25H(mm)
Contact Rating: 12-24V,3A
Power: 12VDC & 24VDC
Sensor distance: 5-10CM

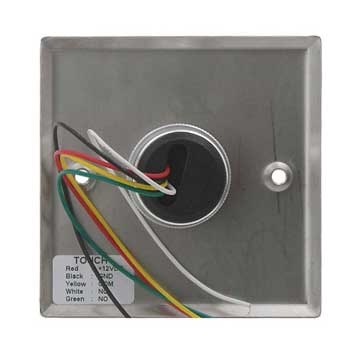

Output: NO/NC/COM/+12/GND
Mechanical Life: 500,000 Tested
Operating Temp: -20℃~+55℃(14-131F)
Operating Humidity: 0-95%(relative humidity)
LED Indicator: Blue LED Indicator (Standby), Green LED Indicator (Sensation)
Suitable for Door: Hollow Door
Unit Weight: 0.1KG
Standard Package: 100PCS/carton
Carton Weight: 11KG
Carton Size: 50*45*24cm
