Zinc alloy/Stainless Steel Exit button
DC12V/24V Waterproof Stainless Steel Exit Button
- Model Number: EX86L
- Waterproof Degree: IP67 Waterproof
- Input: 12VDC or 24VDC
- Output Contact: NO/COM/NC/COM/+12V/GND
Features

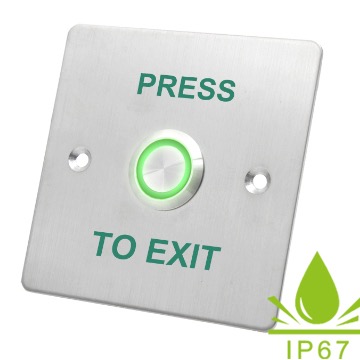

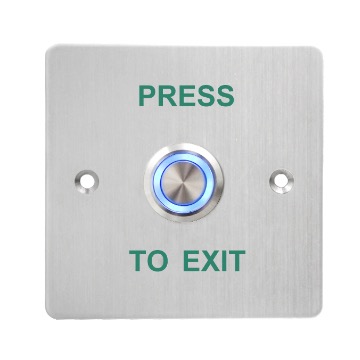

Product Name: SS304 Exit Button with LED light
Waterproof Degree: IP67 Waterproof

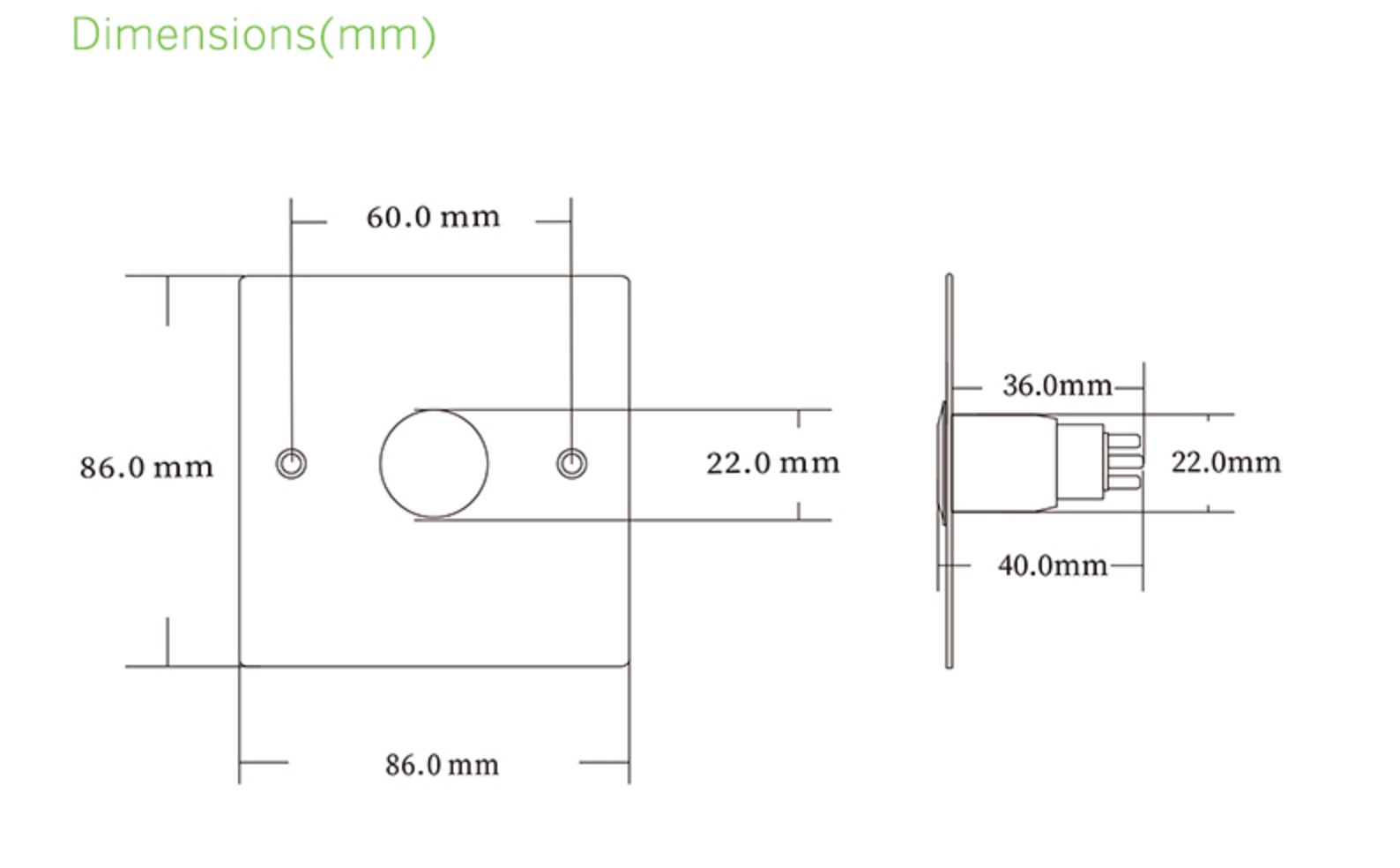

Dimensions: 86Lx86W(mm)
Panel: 1.7mm Thick 304 Stainless Steel (Wire Drawing)
Input: 12VDC or 24VDC
Contact Rating: 3A/125-250VAC
Output Contact: NO/COM/NC/COM/+12V/GND
Mechanical Life: 500000 tests
Suitable for Door: Hollow Door
Operating temp: -20℃～+55℃(14-131F)
Humidity: 0-95% (relative humidity)
LED Color: Default Blue, Optional customized
