Security Electric Drop Bolt Lock For UP Down Fully Frameless Glass Door Support Time delayer

Specification

Product Name: Fail-Safe Electric Bolt for Fully Frameless Glass Door

Feature: Fail-safe type (Power to lock)

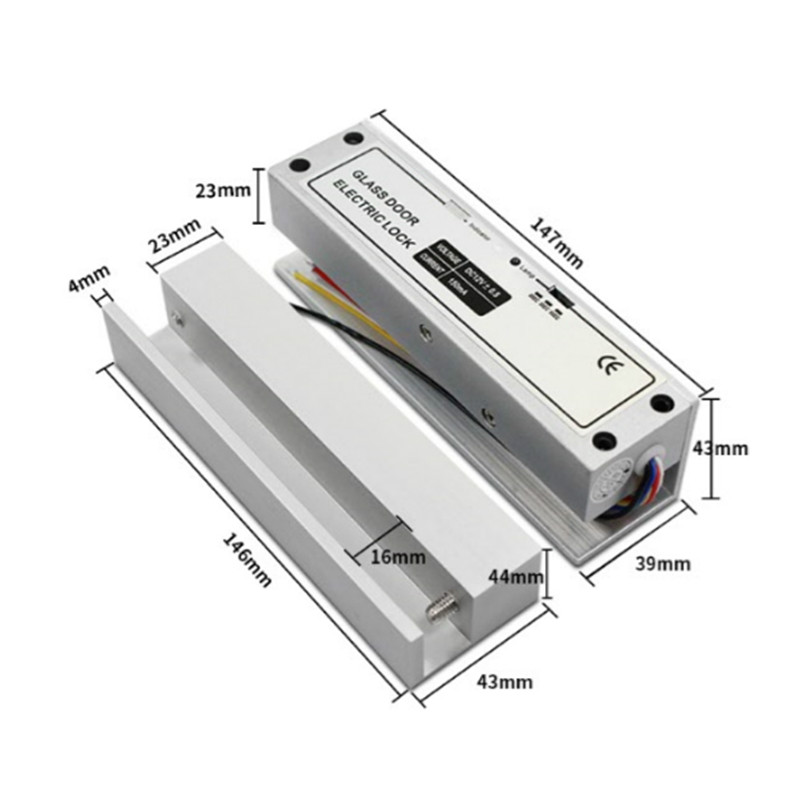

Face Plate: 150Lx40WX37H(mm)

Bolt: 16(length)*13(diameter)(mm)

Voltage: DC12V(DC24V)

Start Current: 960mA

Standby Current: 180mA

Solid Bolt: polishing housing, 1000kg Holding Force

Suitable For: 12mm Electric Bolt  For Fully Frameless Glass Door

Signal Output:  Door status Output,NC/COM

LED: Light on indicates locked, light off indicates unlocked

Surface Temp:  Low Temperature

Induction Distance:  8mm

Special Designed:  Tested to 500000 operations

Face place material:  Stainless Steel

Weight:  0.75KG

Standard Package:  20PCS

Carton Weight: 14.2KG

Carton Size: 40.5*33*13 (cm)
