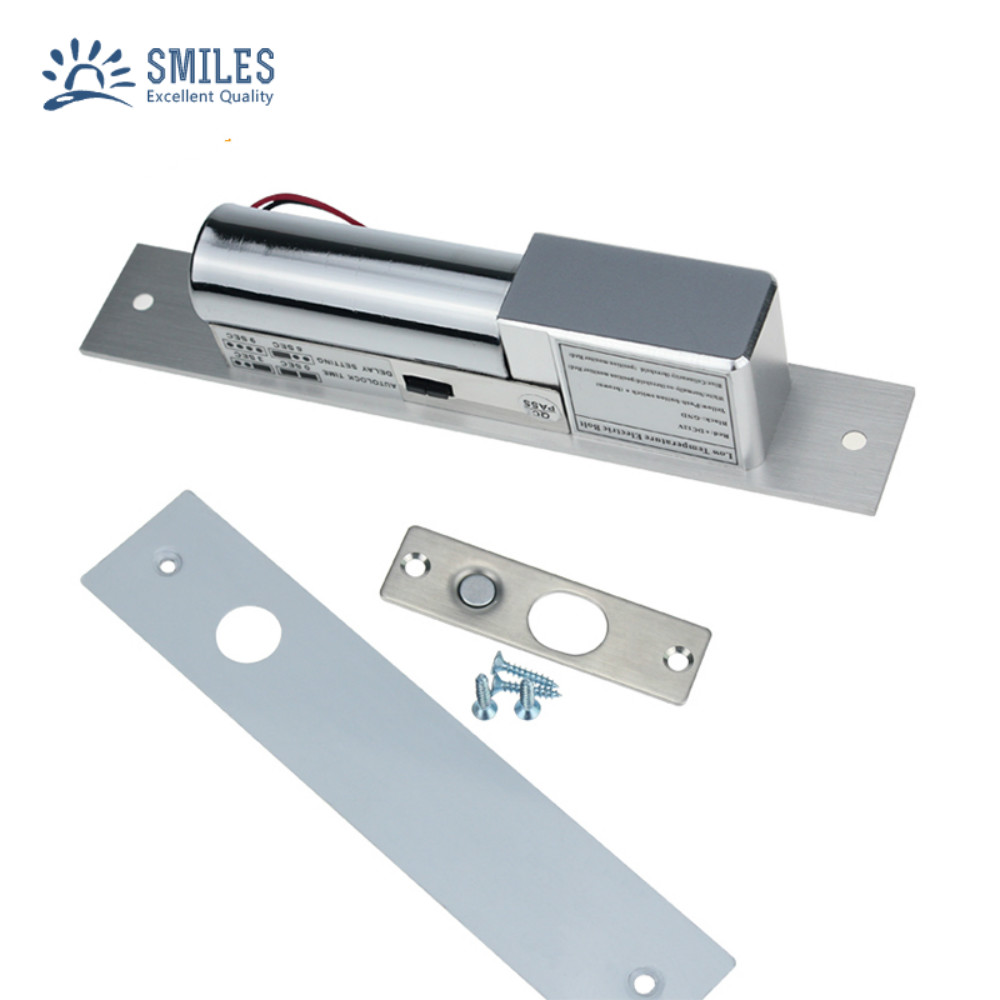

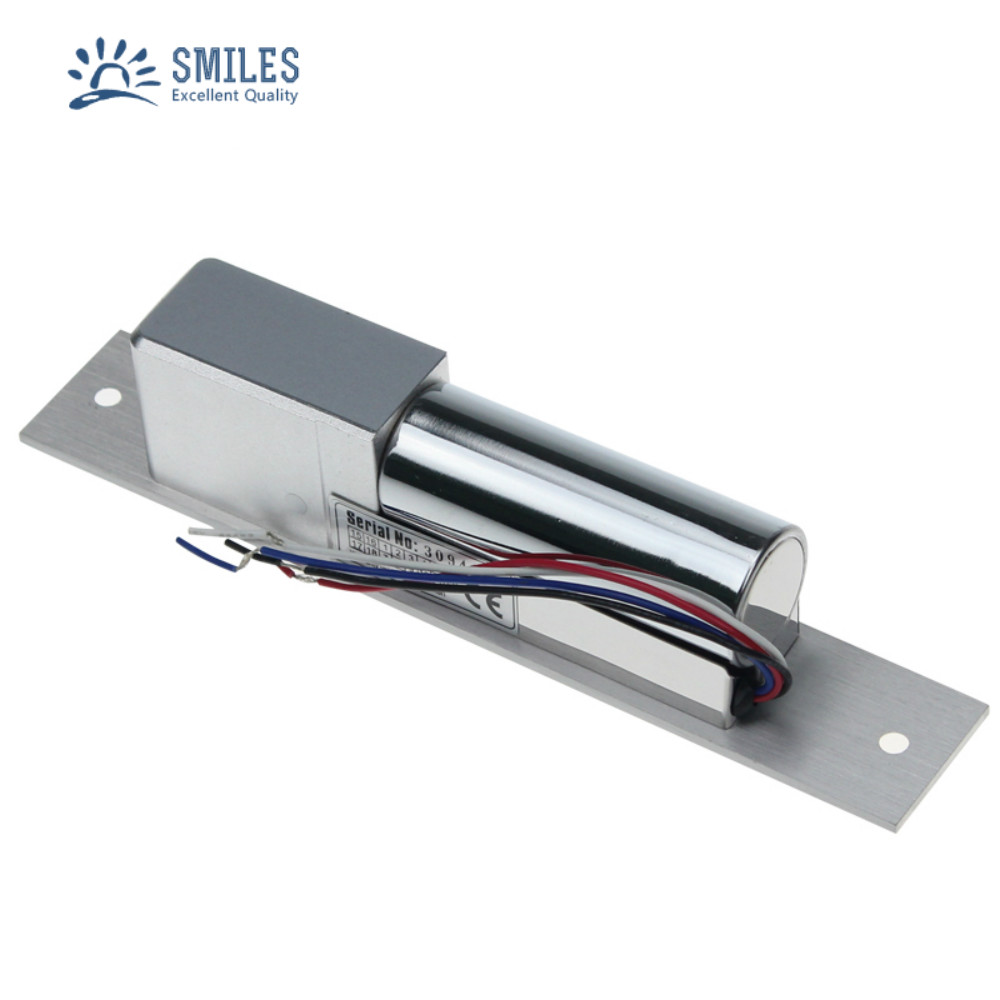

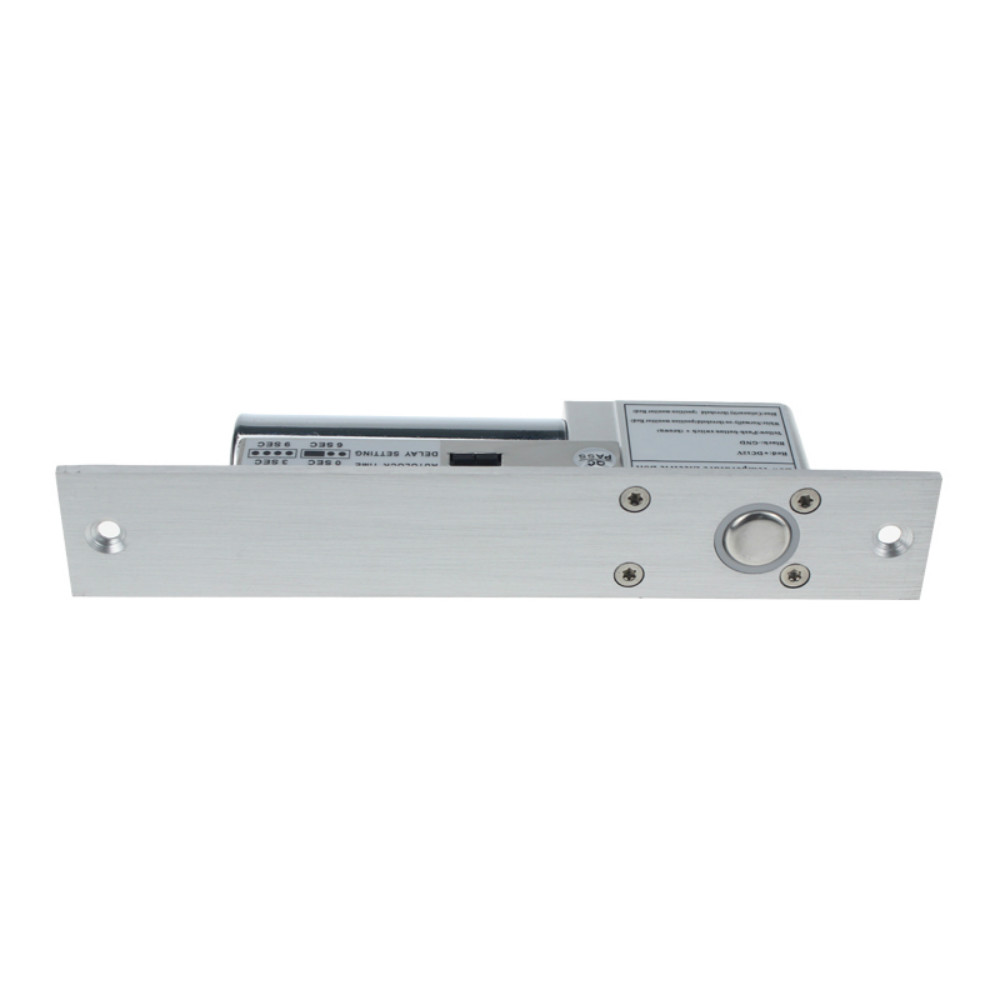

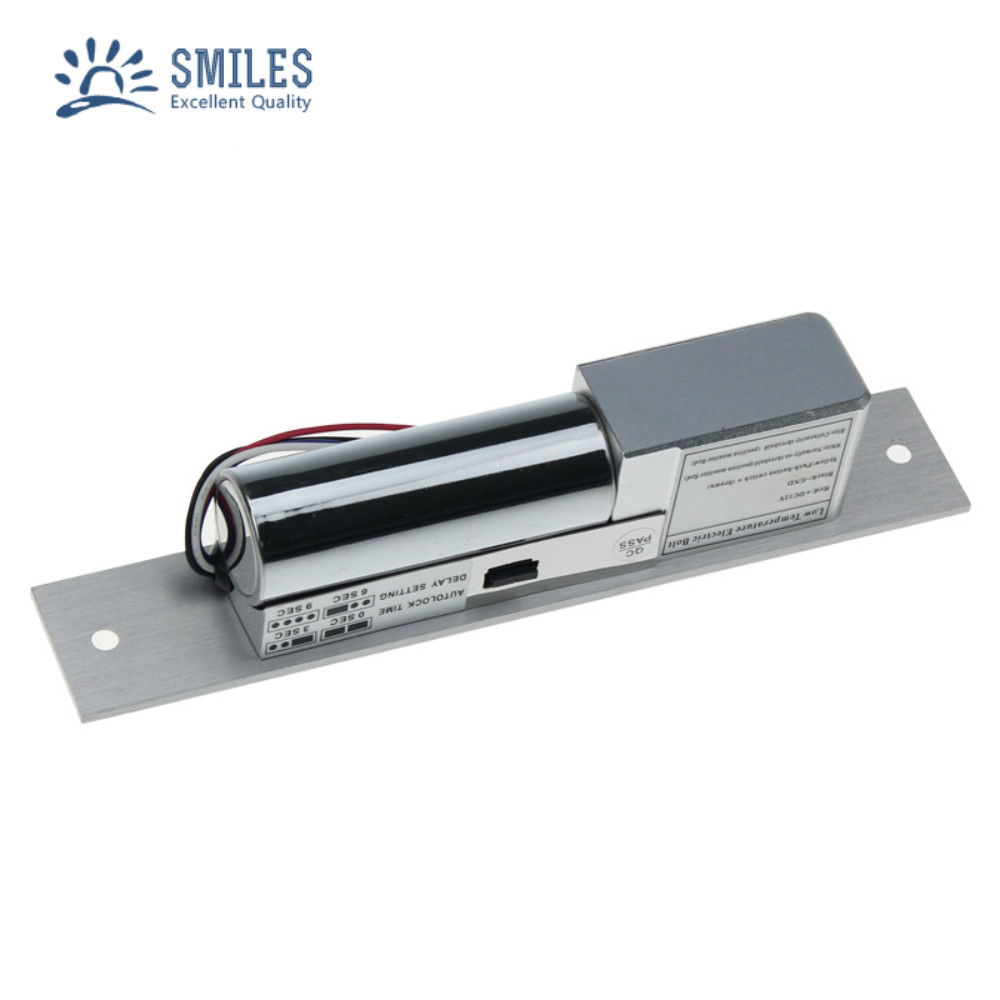

Electric Drop Bolt Door Lock
12V/24V Low Temperature 5 Wires Electricity Drop Bolt Door Lock With Time Delay and Signal Feedback
- Model Number: EB07
- Application: Metal doors, wooden doors, fireproof doors, glass door
- Time Delay: 0/3/6/9 second
- Signal output: NO/NC/COM
Specification
Product Name: Low Temperature Electric Bolt Lock with Time delay and signal feedback
Working voltage: DC 12V/24v
Current: 130mA(Standby),960mA(Start)
Time: 0/3/6/9 second
Suitable: Wooden door , Glass door ,Metal door , Fireproof door
Operating Humidity: 0 ~ 90%(non-condensing)
Features
1. Fail safe operation
2. Low temperature, safe
3. Low power consumption
4. Reverse current protection PCB
5. Reliable locking mechanism
6. Durable and silence operation
7. Full range of optional brackets
8. Suitable for wooden door,glass door,metal door,fireproof door,etc
