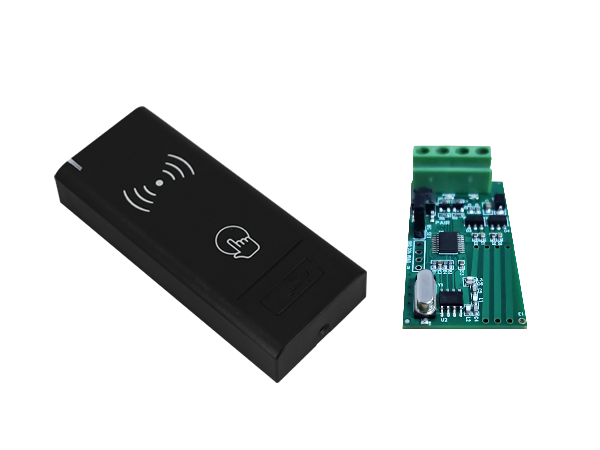

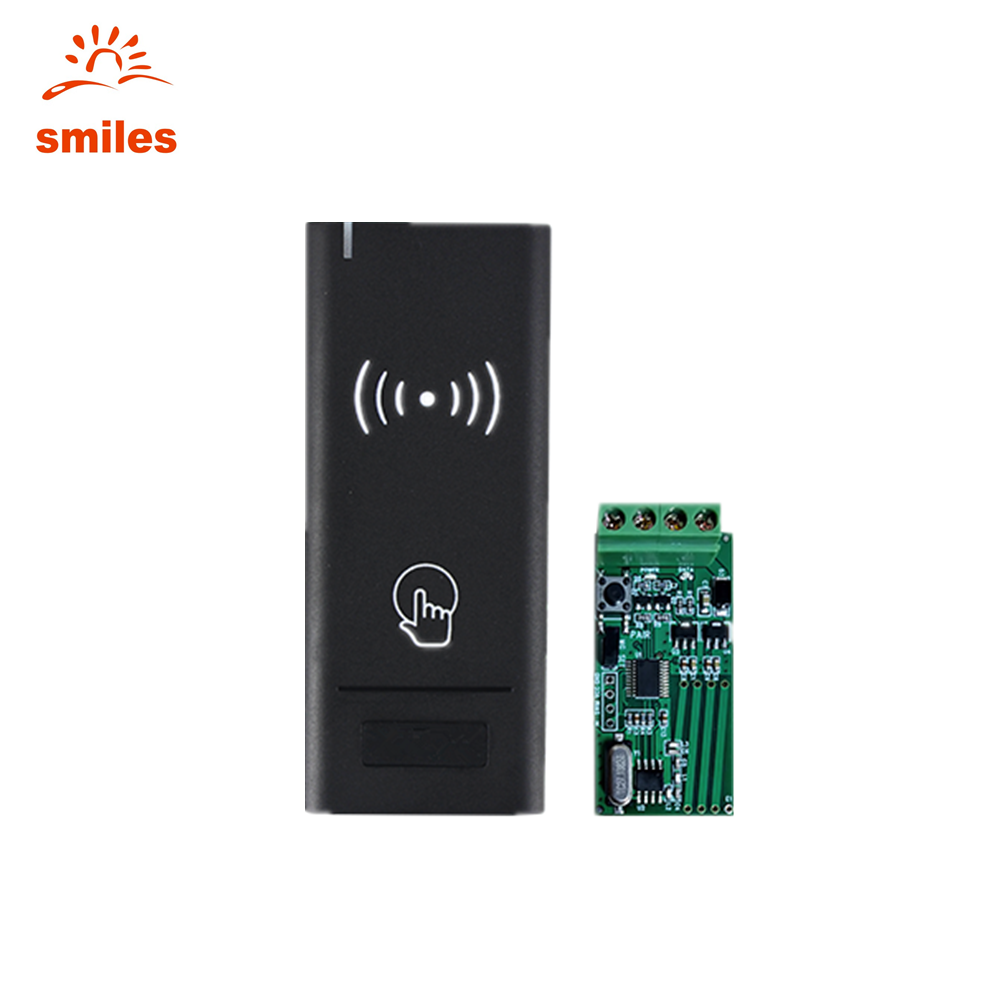

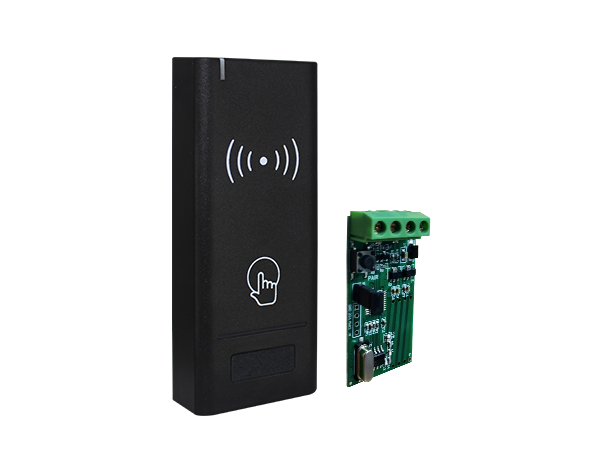

New! Waterproof 433mhz Wireless Card Reader and Receiver Wiegand 26~37bits Support 13.56mhz Card

Specification

Wireless Reader

Card Type: 13.56MHz MF card

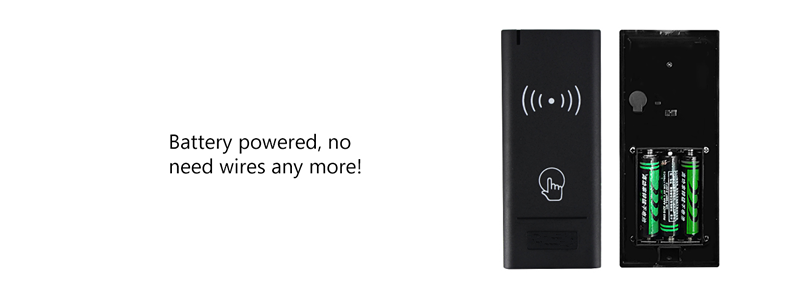

Operating Voltage:  3 units of AAA batteries

Idle Current: ≤5uA

Working Current : ≤35mA

Reading Distance:  ≤3cm

Communication Frequency:  433MHz

Communication Distance:  30m Maximum

Operating Temperature:  -20°C~+60°C (-4°F~+140°F)

Operating Humidity: 0%~86%

Index of Protection: IP65

Color: Black, White optional

Dimensions: L120 * W50 * H20 (mm)

Net Weight: 88g

Receiver

Operating Voltage: 12V DC

Working Current: ≤15mA

Communication Frequency: 433MHz

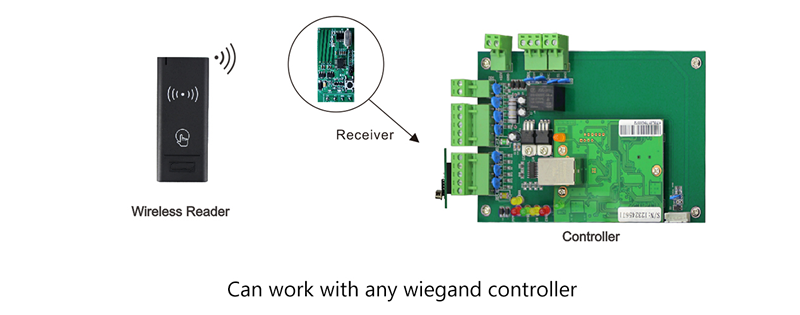

Wiegand Output Format: 26 bits Or 34 bits (Default is 26 bits)

Operating Temperature:  -20°C~+60°C (-4°F~+140°F)

Operating Humidity: 0%~86%

Dimensions:  L25 * W50 (mm)

Net Weight: 10g
