Wiegand 26-34 Bits 433MHz Wireless Keypad Reader With Receiver Support EM/MF Cards

Specification

WK01 is a Wireless Keypad reads PIN only, including the Wireless Keypad and Receiver, it's 433MHz Rolling code communication between the keypad and receiver, and the receiver can be connected to any 3rd party Wiegand controller.

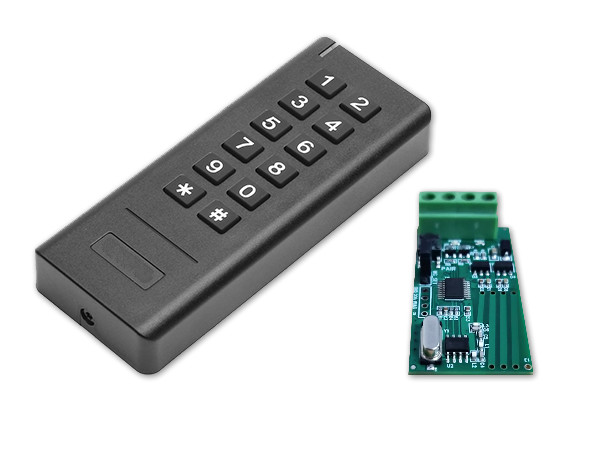

Wireless Keypad Reader and receiver

433MHz Rolling Code technology

PIN Length: 1-6 digits

Programmable Wiegand output of the Receiver: 26 bits or 34 bits

Communication distance: 30m maximum

Ultra low power consumption

Wireless Keypad

Wireless Keypad PIN Length:  1-6 digits

Operating Voltage: 3 units of AAA batteries

Idle Current:  ≤5uA

Working Current: ≤45mA

Reading Distance: ≤3cm

Communication Frequency: 433MHz

Communication Distance: 30m Maximum

Operating Temperature:  -20°C~+60°C (-4°F~+140°F)

Operating Humidity:  0%~86%

Physical:  ABS

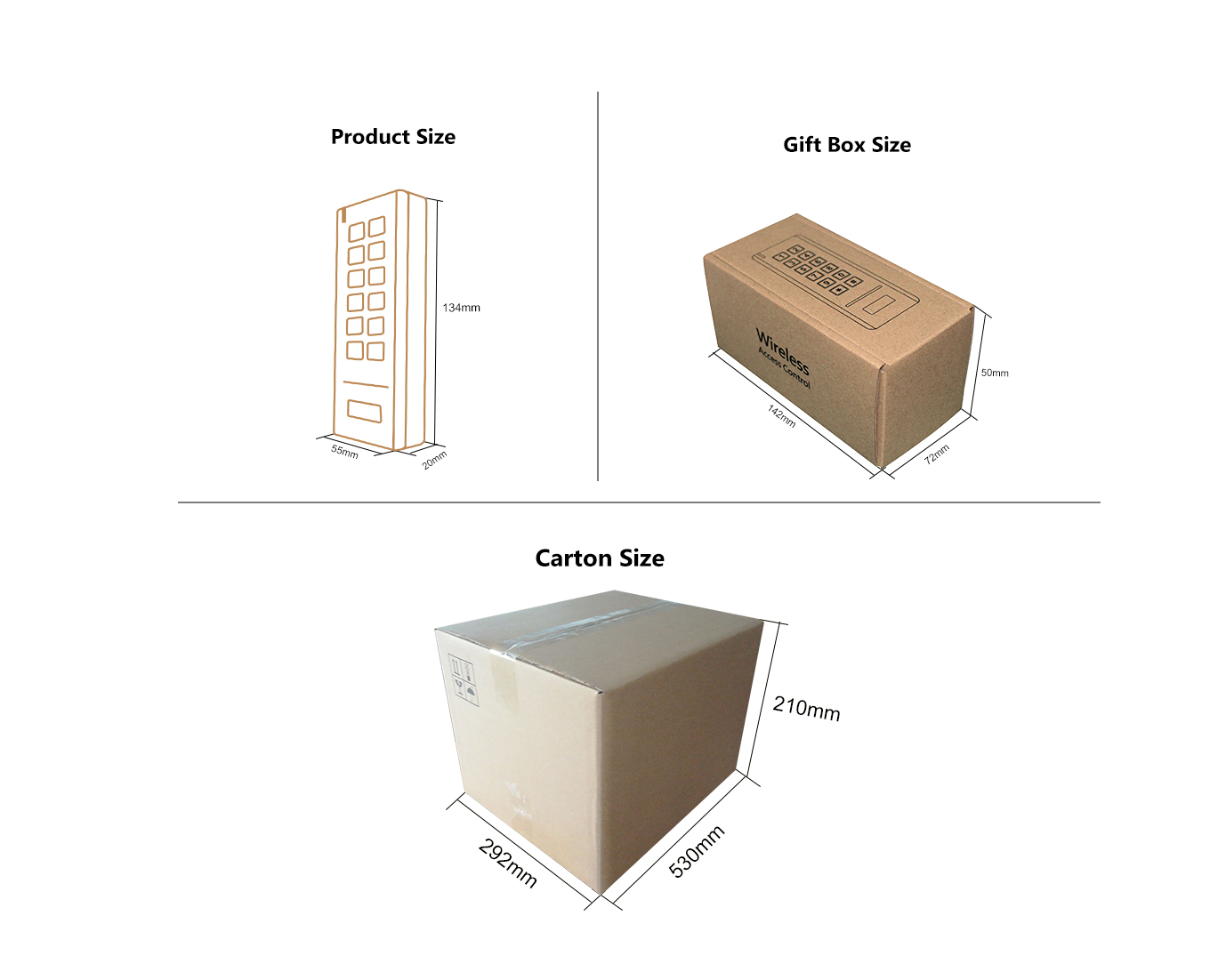

Dimensions:  L134 * W55* H20 (mm)

Net Weight:  100g

Receiver

Receiver Operating Voltage:  12V DC

Working Current:  ≤15mA

Communication Frequency:  433MHz

Wiegand Output Format:  26 bits Or 34 bits (Default is 26 bits)

Operating Temperature:  -20°C~+60°C (-4°F~+140°F)

Operating Humidity:  0%~86%

Dimensions:  L25 * W50 (mm)

Net Weight:  10g
