Emergency Exit Button

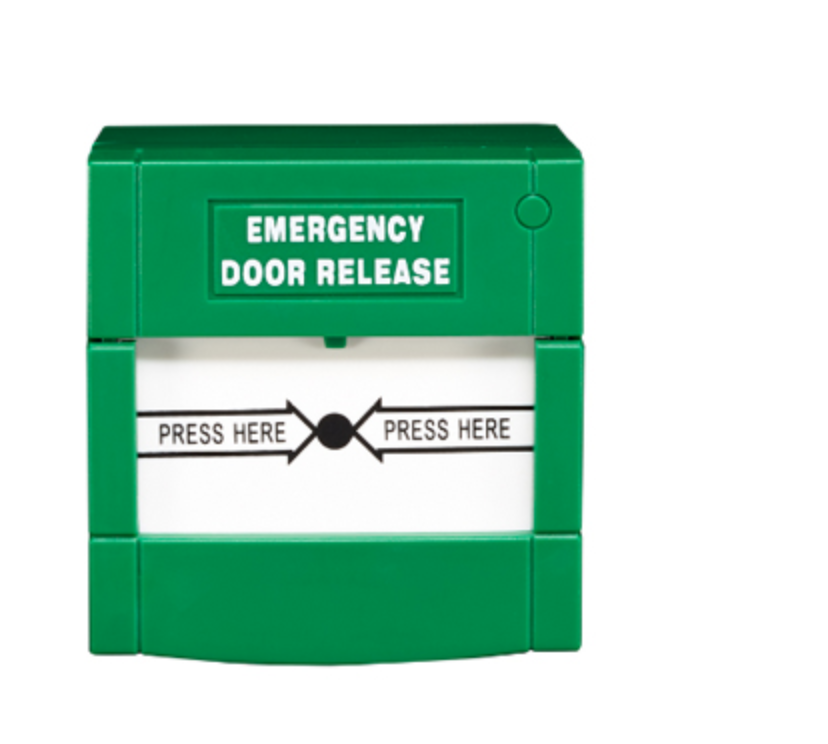

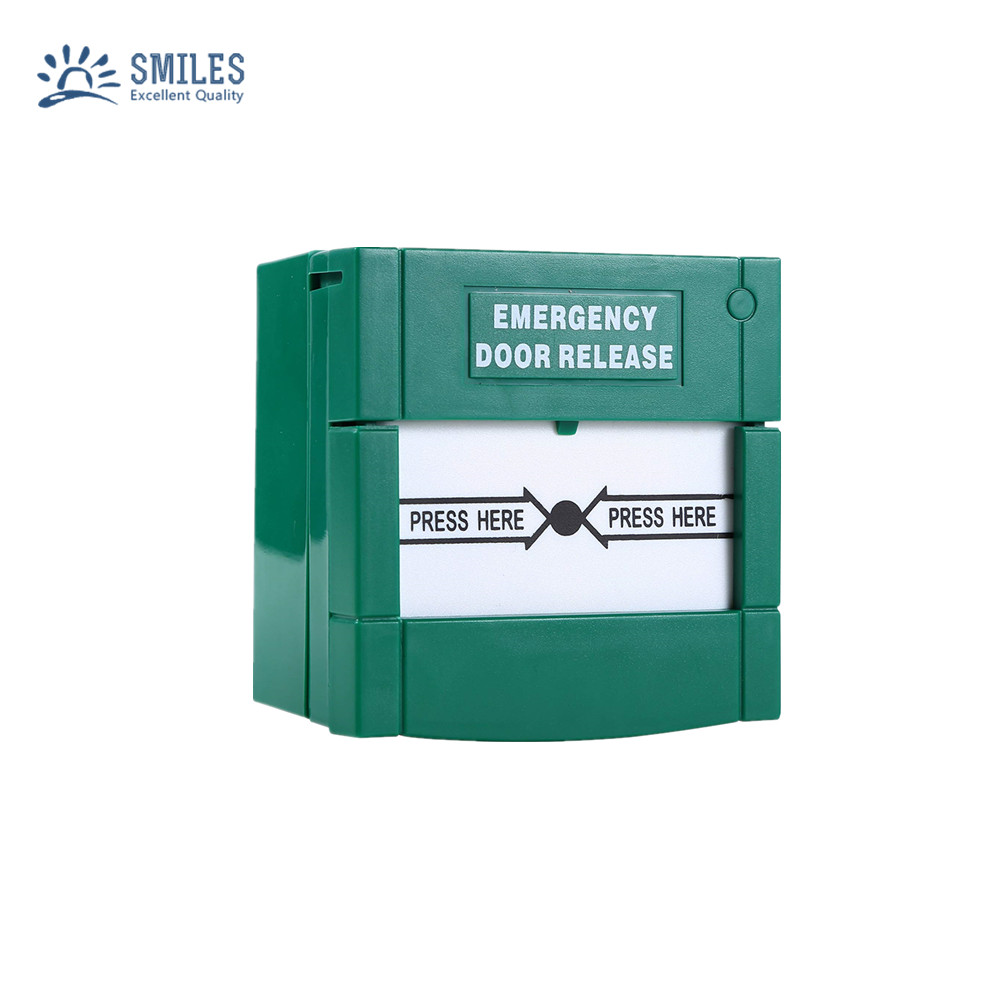

DPDT Resettable Emergency Exit Release Button
- Model Number: EX008
- Max. Voltage: 36VDC Max
- Standard Structure: Fireproof Material, Easy to install

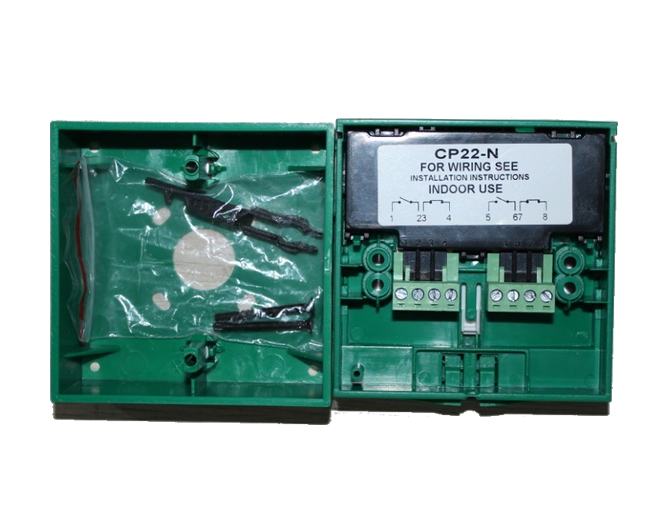

- Output contact: NO/NC/COM
Features

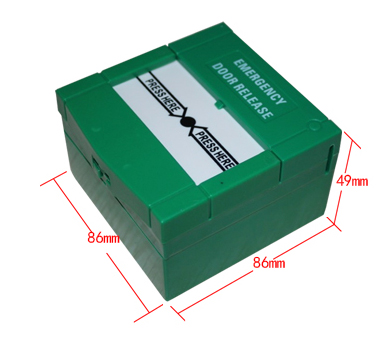

Dimensions:86Lx86Wx56H(mm)
Standard Structure: Fireproof Material, Easy to install
Current Rating: 3A@36VDC Max
Output contact: NC/COM
Mechanical Lifespan: 100000 tested
Feature: Reset automatically,open & close
Suitable for door: Exit Door, Emergency Door
Operating temp: -10°C~+55°C(14℉-131℉)
Operating humidity: 0-95%(relative humidity)
Material Selection: Fireproof Material, Sandblast Finished

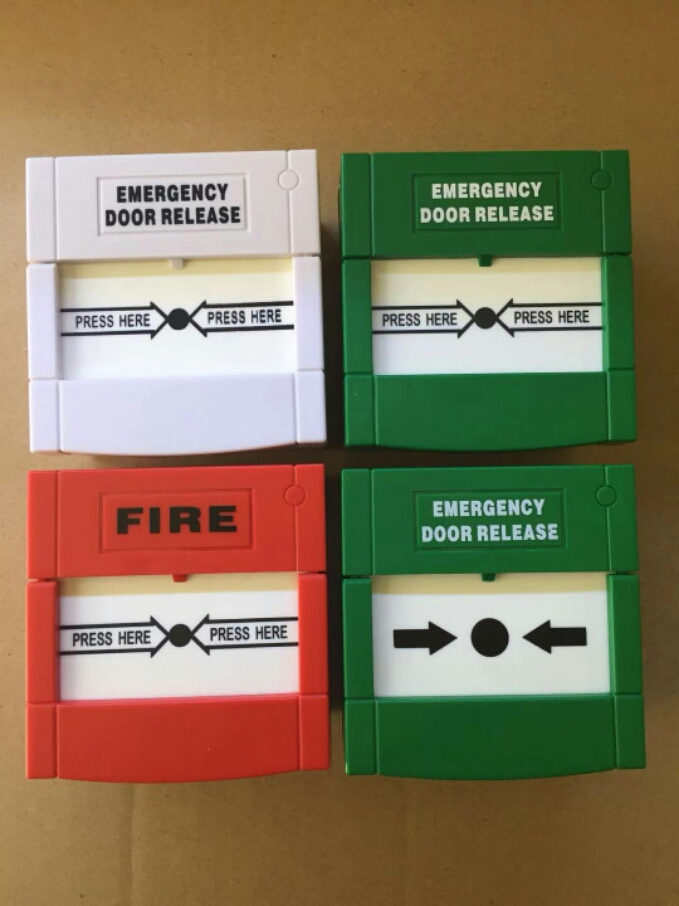

Color: Green, Yellow,White,Red
Weight: 0.2kg / 0.44lb
